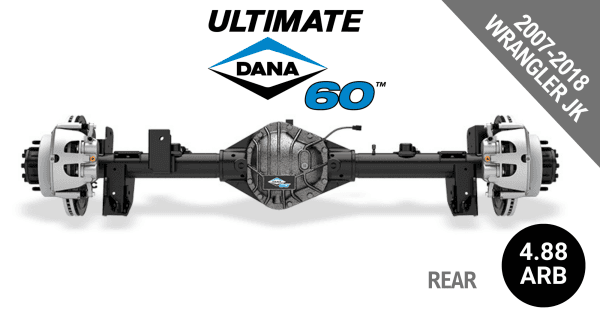

Ultimate Dana 60™ Crate Axle, Fits 2007-2018 Jeep Wrangler JK - Rear Axle - 4.88 Gear Ratio, ARB Air Locking Differential - 10032016

Ultimate Dana 60 Crate Axle, Fits Jeep Wrangler JK - Rear 4.88 ARB - 10032016
Spicer Drive Axle Assembly - 10032016

Engineered to be a direct-fit, bolt-in solution for the Jeep Wrangler JK, Ultimate Dana 60™ axles are built for superior strength inside and out.

The full-float design of the Ultimate Dana 60™ axle means that the vehicle weight is carried by the housing instead of the shaft. So, you can enjoy a greater load-carrying ability wherever your Jeep takes you. The Ultimate Dana 60™ axle features Spicer® 35 spline SAE-4340 nickel chromoly steel axle shafts to help meet the rigors of off-road, providing maximum strength and durability for vehicles with larger tires.

Ultimate Dana 60™ axles are designed to give you an advantage across even the most brutal terrain:

• Spicer® 35 spline SAE-4340 nickel chromoly steel axle shafts


• Axle tubes: 3.5" outside diameter/.370" (front) or .390" (rear) wall thickness


• Spicer® ring and pinion gearing: 10" (256 mm) on front axles and 9.75" (248 mm) on rear


• Genuine “Made in the USA” gearing


• Heavy-duty 8" x 6.5" wheel bolt pattern


• Nodular iron diff cover


• Selectable electronic locking differentials


• Heavy-duty brackets


• Spicer® 1350 strap-style/half-round end yoke


• Upgraded heavy-duty brakes with plug-and-play ABS system
